Bicycle Top Tube Bag With Phone Holder

Why a Double-Sided Bag Rides Better

Most top tube bags mount on one side of the frame or sit as a single wedge behind the stem. Both create the same problem: an asymmetric mass on a machine where the rider is constantly making small balance corrections. Loaded with a multitool and a tube, a one-sided bag is noticeable in the first few kilometres and irritating by the end of a long ride. It also tends to rotate around the tube under vibration, ending up rubbing a crank arm or a knee.

The SL-K041 splits the load across two compartments that hang either side of the top tube, with the mass centred directly over the frame's centreline. The bag cannot rotate because it is not sitting on the tube — it is straddling it, held by the tube itself. That geometry does more for stability than any strap tension can.

It also puts the weight in the best available place on a bicycle. Load carried low and central on the frame has the least effect on handling; the same weight in a saddlebag or a bar bag changes how the bike steers and how it feels out of the saddle.

The Hard Shell Is Doing Real Work

Moulded EVA costs more than a stitched fabric body and adds a little weight. On a bag that carries a phone on a bicycle, it earns both.

A soft frame bag collapses around its contents. That means a phone screen resting directly against a multitool, a tube valve, or a set of keys, with road vibration working on the contact point for the length of the ride. It also means the bag deforms when the bike is leaned against a wall, laid down, or wedged into a car boot — and whatever is inside takes the load.

The EVA shell holds a fixed internal volume regardless of what is in it. Contents cannot press against each other, the phone compartment stays rigid and flat, and a fall that puts the bike on its side puts the impact into the shell rather than into the screen. For a bag whose main cargo is a device worth more than the bicycle it is mounted to, that is the correct engineering priority.

The Phone Compartment

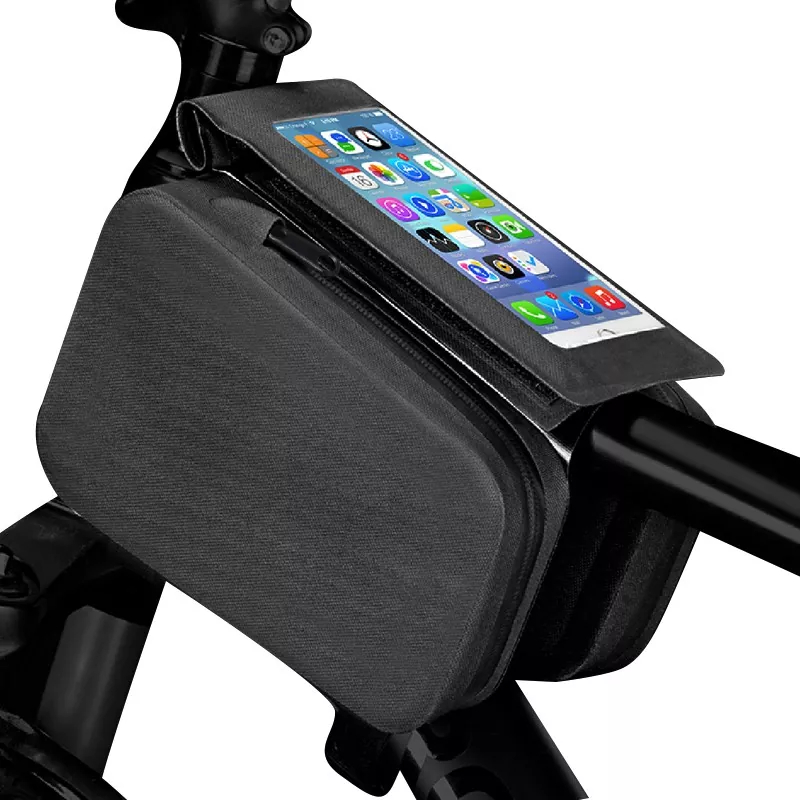

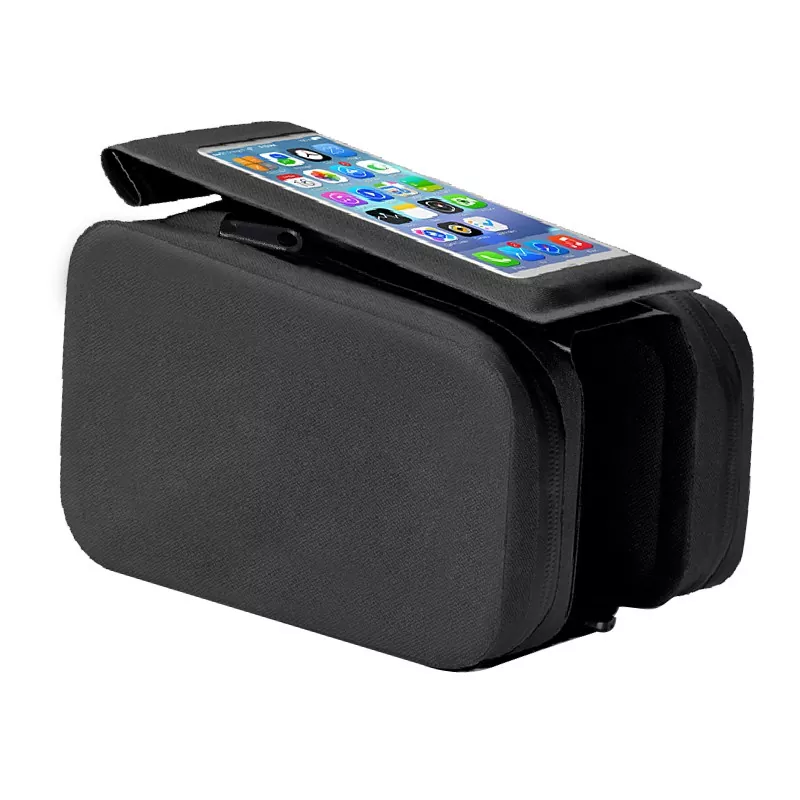

The top compartment holds a phone behind a transparent touch-transmissive film, angled toward the rider so a navigation screen is readable in the riding position without taking a hand off the bars.

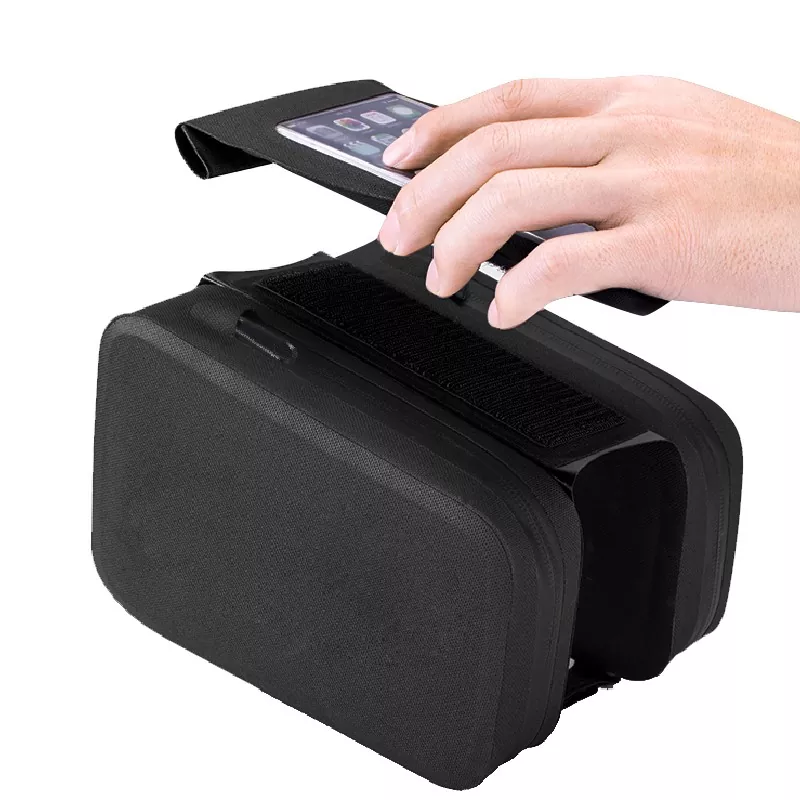

A flip-over flap covers the window when the phone is not in use. This is the part riders appreciate on a wet commute — it keeps rain off the film so the screen stays readable and the touch layer stays responsive, and it shades the display in direct sun. It also protects the film itself, which is the component most likely to scuff and cloud over a season of use.

Two things worth passing to end users. Face ID and fingerprint sensors generally will not read through the film, so the phone should be unlocked before it goes in. And touch response drops when the film is wet — wiping it dry restores it, which is precisely what the flap is there to avoid needing.

Water-Resistant, Not Waterproof

We manufacture welded, IPX-rated waterproof gear, so it is worth being precise about this product. The SL-K041 is a stitched bag in a water-repellent coated fabric over an EVA shell, closed with conventional zippers. It handles rain, road spray, and a wet commute. It is not sealed and it is not immersion-rated.

That is the right specification for a bicycle. A welded waterproof body cannot be moulded to this shape, cannot hold a rigid form, and would add weight and cost to solve a problem most riders do not have — a frame bag is exposed to rain from above, not submersion. The rain flap over the phone window and the repellent shell together cover the realistic exposure.

For riders in genuinely severe conditions, or where a phone must stay dry with certainty, a dedicated waterproof phone pouch inside the compartment is the practical answer, and we make those. Specifying this bag for immersion produces returns; specifying it for the weather it was built for does not.

Product Specifications

What It Carries

The 0.7-litre total is deliberately modest. A frame bag large enough to hold a jacket interferes with knee clearance and standing pedalling, which is why this one is sized to the essentials a rider needs mid-ride rather than everything they might carry.

Fitting It to the Bike

1. Drape the bag over the top tube just behind the stem, with the phone window facing the rider.
2. Wrap the two top tube straps and press the hook-and-loop closed, keeping both straps at equal tension.
3. Wrap the third strap around the head tube to stop the bag sliding backward under braking.
4. Load both side pockets to roughly equal weight so the bag hangs level.
5. Check knee clearance by pedalling through a full rotation while stationary before riding.

Fit takes under a minute and leaves no marks or hardware on the frame, which matters for leased bikes, fleet bikes, and anyone unwilling to clamp anything to a carbon top tube.

Where It Gets Used

Customization for Brands and Buyers

SEALOCK has manufactured outdoor and sports carry gear for over 20 years, with production in Dongguan, China and Ho Chi Minh City, Vietnam. Moulded-shell products like this one sit alongside our welded waterproof lines, which means a buyer building a cycling range can source a frame bag, a waterproof pannier, and a phone pouch from one factory on one schedule with matched branding.

Beyond logo and colourway work, we develop structure from the ground up: altered compartment dimensions and capacity, a resized touch window for larger handsets, a single-sided variant, reflective trim for night riding, internal elastic retention loops, a magnetic rather than hook-and-loop flap closure, alternative mounting systems including silicone straps or a bolt-on bracket, and a fully welded waterproof version if your programme needs immersion protection. Ground-up development runs longer than branding work, and we quote a schedule you can plan a launch around.

How It Is Built

Testing and Inspection

Inspection runs at three stages — IQC on incoming materials, IPQC during moulding and assembly, and OQC before the container is sealed. SGS or QIMA third-party inspection is available on request.

Questions Buyers Actually Ask

Is it waterproof?

No — it is water-repellent. It handles rain and road spray, and the flap keeps water off the phone window. It is not sealed. For certainty in severe conditions, a waterproof phone pouch inside the compartment is the practical answer.

Will it fit an aero or carbon frame?

Yes. The hook-and-loop straps conform to round, aero, and oversized profiles, and leave no marks or hardware — which is the reason many carbon frame owners will not consider a clamp-on bag.

Does it interfere with pedalling?

Mounted just behind the stem, no. Knee clearance becomes a consideration only if the bag is mounted further back along the tube, which is why the fitting instructions specify the forward position and a stationary pedalling check.

Will it slide backward under braking?

Not with the third strap fitted around the head tube. That strap exists specifically for this — riders who skip it are the ones who report the bag creeping.

Does the touchscreen work through the window?

Yes, for normal touch operation. Face ID and fingerprint sensors generally will not read through the film, so unlock the phone before it goes in. Touch response drops when the film is wet; keeping the flap closed between uses avoids that.

What phone size fits?

Up to approximately 6.5 inches. Larger handsets fit inside but may extend past the window edge, limiting how much of the screen is usable. For a fleet or retail programme, check a sample against your market's most common handset before committing.

Can you make a single-sided version?

Yes, and it is a common request where price point matters more than balance. It is straightforward to tool from the same shell platform.

Can you add reflective trim?

Yes. A reflective package is among the most common ODM additions on this platform for commuting and delivery programmes.

What is the minimum order quantity?

500 pieces. For custom colourways or project-specific requirements, contact info@sealock.com.hk.

Explore More Cycling and Phone Carry

For certainty that a phone stays dry in sustained rain, our Universal Waterproof Phone Pouch is IPX8 rated and fits inside the top compartment of this bag.

If you need dry storage on the bike rather than on the frame — a change of clothes, a laptop, tools for a longer tour — our Roll Top Dry Bag straps to a rack or goes inside a pannier with a genuine welded waterproof body.

For carry off the bike, the Lightweight Running Waist Pack uses the same touchscreen window principle in a body-worn format.

Care & Maintenance

• Wipe the shell down after wet or salted-road rides; road salt attacks zipper hardware faster than anything else on a bicycle.
• Clean the touch window with a soft damp cloth only — abrasive cloths and solvents cloud the film permanently.
• Keep the flap closed when the phone is not in use; it is the single most effective thing a rider can do to extend window life.
• Clear grit from the hook-and-loop tape periodically. Loaded straps fail from contamination, not wear.
• Remove the bag when transporting the bike on an external rack — sustained motorway airflow and road grit do more damage in one journey than a season of riding.
• Store indoors and out of direct sunlight. UV is what eventually hardens the EVA shell and clouds the window film.
• Do not machine wash. Hand clean the fabric with mild soap and water and air dry away from direct heat.
