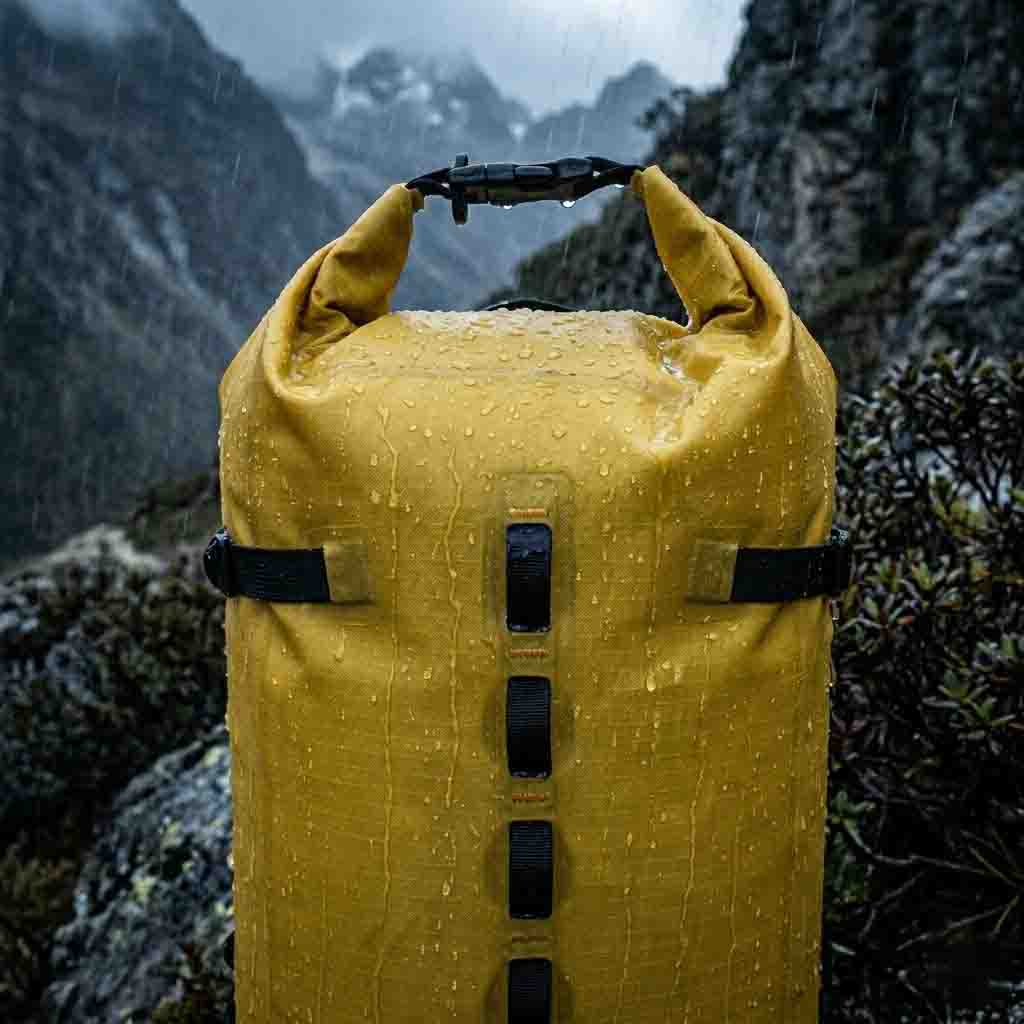

Caught in a Mountain Downpour? How Roll-Top Backpacks Stop Water Intrusion

The Hidden Failure Point Most Hikers Never Notice

Most hikers assume waterproof failure begins when fabric tears or seams split apart. In reality, catastrophic water intrusion almost always begins at the closure system long before the pack body itself fails. During prolonged alpine storms, rainwater does not simply fall vertically. Crosswinds generated by exposed ridge lines force water laterally across the pack surface at sustained pressure. Under these conditions, conventional coated zippers become structural weak points rather than protective barriers.

A fully loaded 25L mountain backpack creates constant outward force against the zipper chain. Every downhill descent, side-step over wet granite, or sudden body rotation transfers dynamic load into the closure track. Over several hours of movement, the zipper rail experiences microscopic torsional distortion. Even premium “water-resistant” zippers begin to separate at the molecular level under repeated flex cycling.

Laboratory imaging of stressed zipper tracks reveals transient micro-channels forming between interlocked teeth during motion. These channels are often smaller than 0.1 mm, invisible to the human eye, yet still large enough for capillary-driven moisture penetration. Once pressurized rainwater breaches the zipper perimeter, the damage compounds rapidly: down insulation absorbs moisture and collapses thermally, sleeping systems lose loft retention, dry clothing layers become unusable, and internal humidity accelerates heat loss inside the pack cavity. In alpine terrain, waterproof failure is a thermal survival issue. This is why true expedition-grade waterproof systems eliminate external zipper dependence entirely from primary cargo entry points.

Why Traditional Seam Tape Eventually Fails

Most outdoor brands attempt to compensate for stitched construction by applying seam tape over needle holes. This solution performs adequately during short-term recreational use but degrades under long-duration compression and folding cycles. Every stitched backpack contains thousands of perforations created during assembly. Seam tape acts only as a secondary covering layer. As the fabric repeatedly flexes under load, the adhesive bond begins to fatigue.

The degradation process accelerates in freeze-thaw mountain conditions, UV-heavy alpine exposure, and salt-contaminated coastal trekking environments. After enough compression cycles, seam tape edges begin peeling microscopically away from the base substrate. Moisture then migrates underneath the tape itself, creating hidden delamination channels impossible to detect visually during field use. This is the fundamental limitation of stitched waterproof construction: the waterproof layer is always secondary, never structural. The Sealock Mountain 25 platform eliminates this failure mechanism entirely by replacing stitched seams with RF molecular fusion welding.

RF Molecular Fusion: Converting Multiple Panels into One Continuous Shell

Instead of sewing TPU panels together and masking the needle perforations afterward, the structural envelope of the Sealock 25L Ultra-Lightweight TPU Mountain Backpack uses high-frequency dielectric welding operating at 27.12 MHz. During this process, overlapping TPU layers are exposed to a controlled electromagnetic field. The polarized TPU molecules oscillate internally at high frequency, generating frictional heat within the material itself rather than from external contact surfaces.

Traditional hot-air welding heats only the outer material surface, often creating inconsistent penetration depth and localized overheating. RF welding activates the molecular structure uniformly across the entire weld zone, allowing the two separate material layers to cross-link into a continuous unified substrate. The resulting seam behaves less like a glued joint and more like a structural extension of the original fabric.

To maintain production consistency, automated RF tooling pressure is controlled at 6.5 bar with digitally monitored dwell timing. A tooling offset of just 0.5 mm reduces fusion uniformity, while a 0.3-second underexposure weakens bond density. Conversely, excessive thermal dwell causes TPU crystallization stress. These tolerances are invisible to consumers but become critical after repeated mountain compression cycles in cold-weather environments. The final weld maintains flexibility at temperatures down to -30°C while preserving tensile elasticity during pack deformation. To analyze how this substrate resists chemical degradation over long exposure fields, see our material report: TPU vs PVC Dry Bags Performance Comparison.

🛠️ The Audit Kill-Shot (B2B Procurement Defense)

When auditing a manufacturing partner for ultralight technical backpacks, reject vendors who rely on hand-held hot-air tools for primary seams. Demand automated radio frequency output logs that match pressure and dwell parameters to specific raw material lots. If a factory cannot provide real-time digital readouts proving their dies lock at a minimum of 6.0 bar, their bond consistency is an estimate rather than an engineered metric. This structural deficiency leads to rapid delamination under cyclic alpine stress. Learn more about our digital calibrations on our processing log: The Ultimate Guide to Seamless Waterproof Construction & RF Welding.

Alpine Ergonomics: Why Air Management Matters

One of the most overlooked problems in waterproof roll-top backpacks is trapped internal air. When hikers seal a waterproof pack at high elevation, residual air becomes compressed inside the cavity. Under dynamic movement, this trapped volume causes the pack body to behave like a partially inflated flotation chamber. The result is subtle but dangerous: the load begins shifting away from the spine during technical movement.

This instability becomes especially noticeable during scree traverses, ice field crossings, steep switchback descents, wet rock scrambling, and fast downhill trekking. Many ultralight waterproof packs ignore this issue entirely, leaving the user to wrestle with an unstable, ballooning load that forces the physical core center of gravity away from the body's structural alignment.

+-------------------------------------------------------------+
| [ Stiffener-Bar Roll Top ] ---> 3-Fold Mechanical Seal |
| [ Rotary One-Way Air Valve ] -> Post-Closure Compression |
| [ Weld-Anchored Harness ] ---> Zero-Stitch Load Dispersion |
+-------------------------------------------------------------+

The integrated Sealock rotary one-way air valve allows users to evacuate excess internal air after closure, reducing unnecessary pack expansion while improving load stability and center-of-gravity control. The benefit is not merely comfort; it directly improves balance efficiency and reduces fatigue accumulation during extended mountain movement.

Failure Analysis: Why Cheap Welded Shoulder Straps Tear Apart

Many low-cost waterproof backpacks advertise “welded construction” while still suffering catastrophic strap failures under moderate carrying loads. The reason is poor load distribution geometry. Budget factories commonly apply direct thermal bonding only at the strap edge junction. This creates a narrow stress concentration zone where tensile force accumulates during walking motion.

Under repeated vertical oscillation, the weld edge experiences localized fatigue cracking. Once the outer TPU skin stretches beyond tolerance, the strap anchor separates from the shell body, tearing the single layer of substrate. Sealock avoids this problem using a multi-layer reinforcement architecture. Each shoulder anchor is bonded onto a widened RF-fused reinforcement matrix that disperses carrying force across a broader structural area. Rather than concentrating load at a single point, the system redirects dynamic stress laterally across the exterior shell surface. This configuration allows the platform to withstand static pull loads exceeding 25 kg without destabilizing the waterproof interior membrane.

Technical Engineering Specifications (Model: Mountain 25)

The following performance data outlines the structural standards for this 300g ultralight technical manufacturing run. For alternative heavy-duty, submersible transit layouts, refer to our primary Waterproof Travel Dry Bag Backpack line.

B2B Procurement Action: To benchmark these structural tolerances against your brand's existing tactical gear catalog, contact our sample engineering department to initiate a prototype build based on this verified 15L fishing chassis.

Pneumatic Leak Inspection: Why Spray Testing Is Not Enough

Most outdoor factories perform waterproof verification using surface spray simulation. This method detects only obvious leakage failures. Microscopic weld pinholes often remain completely invisible under standard spray exposure. Sealock instead subjects every production batch to controlled pneumatic inflation testing.

Each completed Mountain 25 shell is pressurized internally to 2.5 PSI before full submersion inside a transparent inspection chamber. Quality technicians then monitor every weld junction and valve perimeter for escaping air bubbles. Even microscopic air leakage reveals a structural defect. This testing method is significantly more sensitive than surface spray simulation because escaping air identifies weaknesses before liquid water intrusion becomes visible. In practical field conditions, this means the pack maintains waterproof integrity even during prolonged exposure to wind-driven mountain rainstorms and partial submersion scenarios.

Defeating Alpine Field Failures: Engineering FAQ

Q: Why do some hiking roll-top bags slip and unroll themselves during dynamic movement?

A: Roll-top slipping occurs when a factory uses low-modulus internal collar plastic parts that warp under the internal air pressure of a packed bag, paired with slick, low-friction external textile coatings. When the bag experiences vertical oscillation during trekking, the distorted bar creates micro-gaps, allowing the fold layer to slide out of buckle lock. Sealock resolves this by using rigid synthetic stiffener bars that maintain flat geometry under internal pneumatic load, paired with a high-friction TPU face coating that physically locks the rolled layers together once buckled.

Q: A 300g ultra-lightweight mountain backpack sounds fragile. How does it resist sharp granite abrasion?

A: Mass reduction does not require durability loss. Low-tier light packs rely on ultra-thin nylon sheets coated with external polyurethane layers that rub off within a few miles of rock scraping. Sealock's 4-Division TPU incorporates a high-density core fabric layered between dual-sided polyether polyurethane sheets. The external elastomeric layer stretches and deforms to absorb abrasive kinetic impacts rather than tearing, yielding extreme puncture resistance while maintaining a 300g empty chassis weight.

Q: Many product reviews show that welded shoulder straps snap under a 12kg packing load. What is your load threshold?

A: Strap separation happens because cheap factories apply direct thermal contact heating straight to the strap-to-shell boundary, thinning the material edge and creating a micro-fracture line. Sealock utilizes an integrated multi-layer reinforcement matrix at all suspension junctions. These reinforcement anchors are fused via automated RF tools over a wider distribution area, redirecting vertical stress laterally across the skin. The layout allows our shoulder straps to withstand static pull forces exceeding 25 kg without introducing micro-perforations into the dry cell wall.

Q: How many times must I roll the top closure to guarantee a true storm-proof seal?

A: To secure a true IPX6/IPX7 shield against wind-driven alpine downpours, you must execute a minimum of three complete, uniform folds over the stiffener bars. Fewer rolls leave the physical labyrinth seal too short to resist the capillary action of high-velocity water streams. Once rolled, open the rotary one-way air valve to exhaust remaining internal air pressure, compressing the load flush against your back and locking the roll-top tension down tight.
